Thread Rolling Dies
The Highest Long-Life Rolling Dies In The Market for all machines
Videx Nitrated thread rolling dies are available for Videx machines and for all other planetary thread rollers. The dies are offered from a special steel, providing longer die life and less frequent change-over of dies. HSS Nitrated dies are offered as well, for special applications. Most standard inch and metric thread rolling dies for Videx machines are offered ex-stock. Videx offers a complete manufacturing solution from one source, including the feed system, machine and dies.

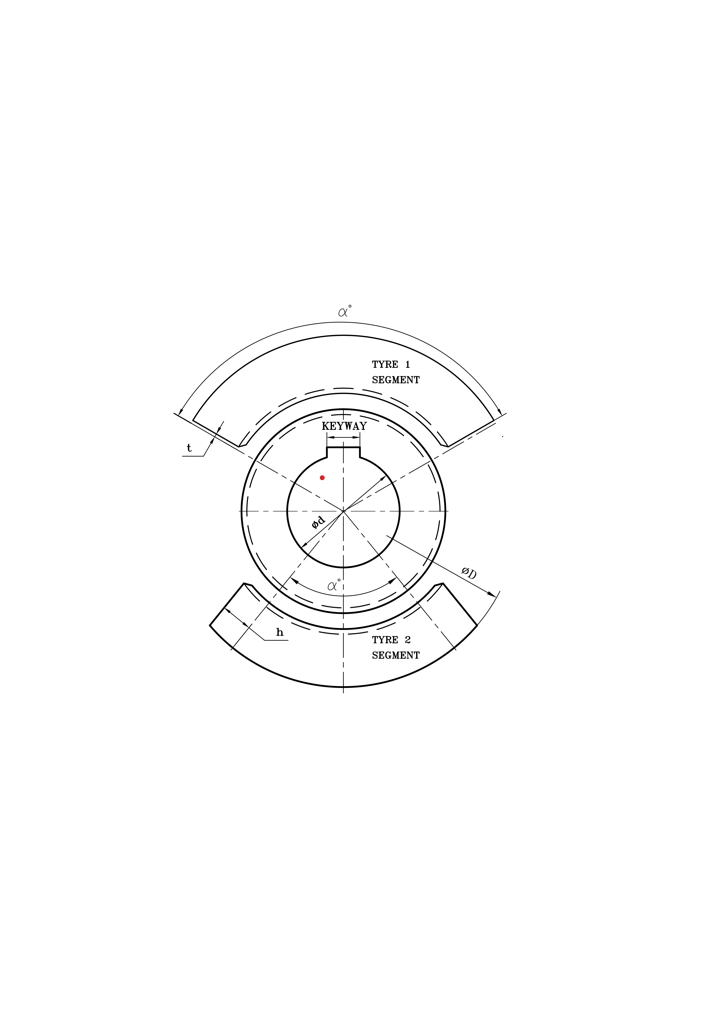

| Machine manufacturer | Model | Rotary die ID [d] | Segment OD[D] | Segment angle | Segment type I[t] | Segment type II [h] | Equivalent to model | # of seg. in set | Keyway [“] or [mm] |
| Bearkat | KI-30 | 127 | 240 | 120º | min | SSR-30 | 3 | 1/2"/ 13mm | |
| Bearkat | KI-50 | 127 | 340 | 120º | min | SSR-50 (GR-4) | |||
| Capelli | 101 | 140 | 241.3 | 5 | No | ||||
| Capelli | 106/108/206 | 127 | 241.3 | 60º | 22.2 | V-10(GR-2) | 4 | 1/2" | |
| Crimela | RUL-T1 | 150 | 300 | 120º Slotted segment. Rotary with 4 holes | 3 | 12 | |||
| Crimela | RUL-T2 | 200 | 490 | Square Segment | 2 | ||||
| E.W.Menn | RW-3, RW5 | 40 | 120 | 90 | 1 | GR-1 | 4 | 10 | |
| E.W.Menn | RW-8 | 127 | 241.3 | 60 | 22.2 | V-10(GR-2) | 4 | 1/2" | |
| E.W.Menn | RW-10 | 127 | 280 | 60 | 37 | GR-3 | 3 | 1/2" | |
| Fray | NF 1037/28591 | 133.35 | 225.25 | 3 | 1/2" | ||||
| Grefe | 02-Apr | 60 | 150 | slotted | 3 | 18 | |||
| Grefe | 02-Jun | 60 | 170 | 3 | 18 | ||||
| Hartford | PTR-1200 | 127 | 241.3 | 60 | 22.2 | GR-2 | 4 | 1/2" | |
| Hilgeland | SW0 | 40 | 120 | 12 | |||||
| Hilgeland | SW2 | 127 | 241.3 | not GR-2 | 4 | 1/2" | |||
| Ingramatic | GR-1 | 40 | 120 | 90 | 1 | GR-1 | 4 | 10 | |
| Ingramatic | GR-2 | 127 | 241.3 | 60 | 22.2 | V-10 (GR-2) | 4 | 1/2" | |
| Ingramatic | GR-3 | 127 | 280 | 60 | 37.6 | GR-3 | 3 | 1/2" | |
| Ingramatic | GR-4 | 127 | 340 | 120 | min | SSR-50 (GR-4) | 3 | 13 | |
| Izpe | SO | 54 | 172 | ||||||
| Izpe | SOE | 54 | 190 | ||||||
| Izpe | S1-ETR | 127 | 241.3 | Segment L=175mm | 3 | 24 | |||
| Nedschroef | BS-2 | 127 | 241.3 | 60 | 22.2 | V-10(GR-2) | 4 | 1/2" | |
| Nedschroef | BS-3,BS-4, C2 | 152.4 | 342.9 | 90 | 27 | WAT-20 | 3 | 5/8" | |
| Omega | RR-3,RR-4 | 40 | 120 | 90 | 1 | GR-1 | 4 | 10 | |
| Omega | RR-6 | 127 | 241.3 | 90-120 | 2 | 3 | 1/2"-13 | ||
| Omega | RR-10 | 127 | 280 | 60 | 37 | GR-3 | 3 | 1/2" | |
| Pressvit | R104 | 40 | 120 | 90 | 1 | GR-1 | 4 | 10 | |
| Pressvit | R106,R108 | 127 | 241.3 | 60 | 22.2 | V-10 | 4 | 1/2" | Pressvit | R112 | 127 | 280 | 60 | 37 | GR-3 | 3 | 1/2" |
| Prutton | 75-1 (RTHD) | 139.7 | 235 | D.T. | |||||
| Prutton | 75-3K (RTHE) | 139.7 | 241.3 | 72 | min | 5 | No | ||
| Prutton | 75-4 (RTHE) | 139.7 | 235 | 90 | min | 4 | 1/2" | ||
| Prutton | 75-4K (RTHE) | 139.7 | 241.3 | 90 | min | 4 | No | ||
| Prutton | 75-5K (RTHE) | 127 | 241.3 | 72 | min | 5 | 1/2" | ||
| Prutton | 75-6(RKE) | 127 | 235 | 90 | min | 4 | |||
| Prutton | 75-6K (RKG) | 127 | 241.3 | 90 | min | V-10(GR-2) | 4 | 13 | |
| Prutton | 75-7K (RKG) | 127 | 241.3 | 120 | min | 13 | |||
| Prutton | 125-1/4/101 (RTHD) | 266.7 | 393.7 | D.T. | |||||
| Prutton | 150-4 (RTH) | 190.5 | 304.8 | 90 | min | 4 | 1/2" | ||
| Prutton | 150-6/7 (RKE/E) | 178 | 304.8 | 90/120 | min | 04-Mar | 1/2" | ||
| Prutton | 150-CHD-20 | 178 | 304.8 | 87 | Length 208mm | 1/2" | |||
| Prutton | 150-AH-30 | 178 | 304.8 | 120 | Length 200mm | 1/2" | |||
| Prutton | 155-1 (RTHE) | 190.5 | 279.4 | D.T. | |||||
| Prutton | 155-3/102 (RTHE) | 190.5 | 304.8 | 72 | min | 5 | |||
| Prutton | 155-5 (RKE) | 178 | 304.8 | 72 | min | 5 | |||
| Prutton | 200-1 (RTHD) | 266.7 | 406.4 | D.T. | |||||
| Prutton | 200-4 (RTHE) | 266.7 | 406.4 | 90 | min | 4 | |||
| Prutton | 200-6 (RKE) | 228.6 | 406.4 | 90 | min | 4 | |||
| Prutton | 200-6K (RKEE) | 228.6 | 420 | 90 | min | 4 | 18 | ||
| Prutton | 200-7K (RKEE) | 228.6 | 420 | 120 | min | 3 | 18 | ||
| Prutton | 300-810 (RTH10) | 254 | 393.7 | 90 | min | No | |||
| Prutton | 300-820 (RTH20) | 254 | 393.7 | 180 | min | No | |||
| Prutton | 300-910 (LRTH10) | 254 | 444.5 | 90 | min | No | |||
| Prutton | 300-920 (LRTH20) | 254 | 444.5 | 180 | min | No | |||
| Prutton | 400-7 (RKE) | 266.7 | 495.3 | 120 | 5 | 20 | |||
| Ruja | #5;Eagle V | 127 | 241.3 | 90-120 | min | WAT-10 | |||
| Ruja | #6;Eagle IV | 152.4 | 342.9 | 90 | 27 | WAT-20 | |||
| Ruja | #9;Eagle I | 228.6 | 420 | 160 | 0-5 | 2 | 18 | ||
| Ruja | #9;Eagle III | 228.6 | 420 | 120 | 0-5 | SSR-70 | 3 | 18 | |
| Ruja | #10/125 | 254 | 520 | 145 | min | 2 | 25.4 | ||
| Sacma | RU2 TG | 177.8 | 280 | 3 | 1/2" | ||||
| Sacma | RU2 TG II | 127 | 280 | 60 | 37 | GR-3 | 3 | 1/2" | |
| Sacma | SR-4 | 152.4 | 380 | 90-120 | 03-Apr | ||||
| Sakamura | SSR-30 | 127 | 240 | 120 | min | SSR-30 | 3 | 13 | |
| Sakamura | SSR-50 | 127 | 340 | 120 | min | SSR-50 (GR-4) | 3 | 13 | |
| Sakamura | SSR-50D | 152.4 | 340 | 120 | min | 3 | 13 | ||
| Sakamura | SSR-70 | 228.6 | 420 | 120 | min | SSR-70 | 3 | 18 | |
| Sakamura | SSR-100 | 226.7 | 520 | 120 | min | 3 | 20 | ||
| Sakamura | SSR-100-HD | 266.7 | 520 | 120 | min | SSR-100 | 3 | 20 | |
| Salvi | 502/505/506 | 127 | 241.3 | 0 | 03-Apr | 1/2" | |||
| Salvi | RB1 | 127 | 280 | 60 | 37 | GR-3 | 3 | 1/2" | |
| Saspi | RV-4 | 40 | 120 | 90 | 1 | GR-1 | 4 | 10 | |
| Saspi | RV-12 | 127 | 304.8 | ||||||
| Seny | D8 TRS | 127 | 241.3 | 4 | 1/2" | ||||
| Seny | RS12, D12-TRS | 127 | 280 | 60 | 37 | GR-3 | 3 | 1/2" | |
| Sima | RAP-4 | 40 | 120 | 90 | 7.5 | 7.5 | slotted | 3 | 10 |
| Sima | RAP-6 | 127 | 240 | 120 | 2 | slotted | 3 | 13 | |
| Sima | RAP-7 | 127 | 240 | 120 | 2 | slotted | 3 | 13 | |
| Sima | RAP-10/11/12 | 127 | 304.8 | 120 | 2 | slotted | 3 | 1/2"-13 | |
| Sima | RAP-16/20 | 228.6 | 419.1 | 120 | 5 | slotted | 3 | 18 | |
| Sima | RAP-25 | 228.6 | 419.1/420? | 165 | 4 | slotted | 2 | 18 | |
| TLM | RS-6 | 40 | 120 | 90 | 1 | GR-1 | 4 | 10 | |
| TLM | RS-8 | 127 | 241.3 | 90-120 | 03-Apr | 1/2" | |||
| TLM | RS-12 | 127 | 280 | 60 | 37 | GR-3 | 3 | 1/2" | |
| TLM | RS-16 | 127 | 340 | 120 | min | SSR-50 (GR-4) | 3 | 13 | |
| Videx | V-00 | 40 | 120 | 90 | 1 | GR-1 | 4 | 10 | |
| Videx | V-0 | 69.85 | 152.4 | 47 | 18 | V-0 | 4 | 12 | |
| Videx | V-10,V-5 | 127 | 241.3 | 60 | 22.2 | V-10(GR-2) | 4 | 1/2" | |
| Videx | V-15 | 150 | 300 | 36 | 65.5 | V-20 | 3 | 12 | |
| Videx | V-20 | 150 | 300 | 36 | xx | 65.5 | V-20 | 3 | 12 |
| Videx | V-25 | 167.5 | 342.9 | 62 | xx | 59 | V-25 | 3 | 5/8" |
| Videx | V-30 | 228.6 | 419.1 | 65.5 | xx | 72.5 | V-30 | 3 | 18 |
| Videx | V-35 | 228.6 | 419.1,420 | 100 | xx | 72.5 | V-35 /Ruja 9 | 02-Mar | 18 |
| Waterbury | WAT-1P | 127 | 241.3 | 120 | 3 | xx | slotted | 3 | 1/2" |
| Waterbury | WAT-10 | 127 | 241.3 | 60 | xx | 20.2 | V-10,(GR-2) | 4 | 1/2" |
| Waterbury | WAT-20 | 152.4 | 342.9 | 90 | xx | 27 | WAT-20 | 3 | 05-Aug |
